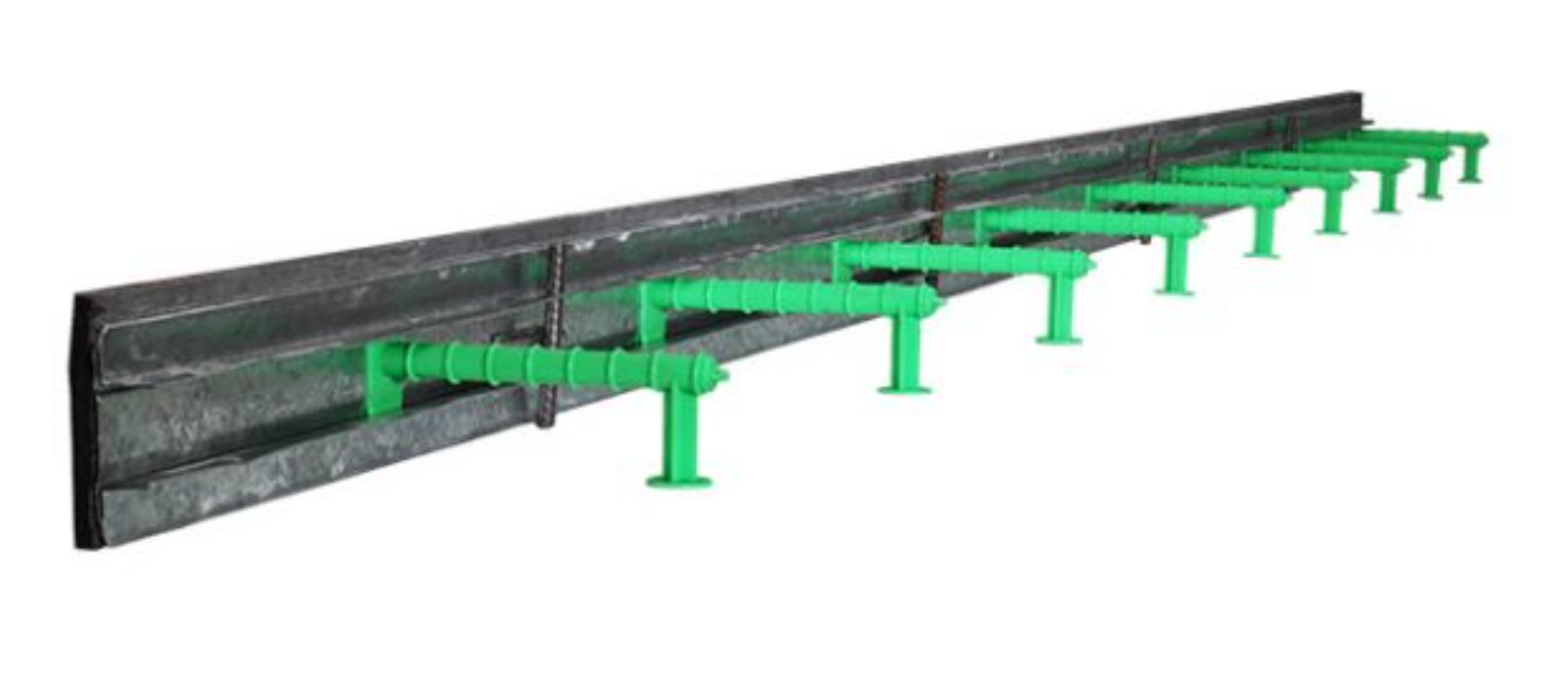

EXJ100 Full System is for a 100mm slab. The system includes 1 x100mm x 3m Expansion Joint, 9 x 12x300mm Galvanised Dowels, 9 x Dowel Sleeves and 1 x 4 Pack of Pegs and Wedges.

The Connolly Expansion Joint system has pre-formed holes which allow it to be used in conjunction with Connolly Universal Dowel Sleeves (UDS). The Universal Dowel Sleeves are installed in the steel section using the patented Connolly twist-fix feature. The preformed holes will accommodate round dowels up to 30mm diameter and square dowels up to 24mm. The Expansion Joint profile is available in 3m lengths for slab thicknesses from 100mm to 300mm.
